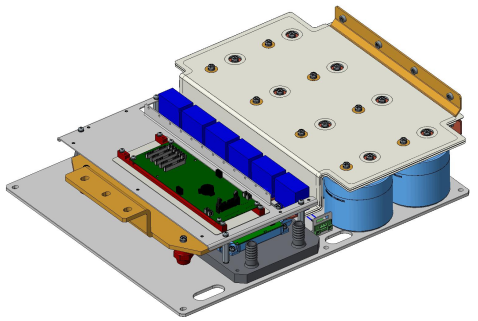

EnglishFPS216H126TW001
Features:
● 2L half-bridge
● 6 IGBTs in parallel
● Liquid cooling
Typical Applications:
● High power converters
● Wind power generation
● Motor drive
● 2L half-bridge
● 6 IGBTs in parallel
● Liquid cooling
Typical Applications:
● High power converters
● Wind power generation
● Motor drive
| Rated AC voltage | Rated AC current | Rated Full DC bus voltage |
|---|---|---|
| 380V | 2160A | 800V |
Product Information
Product specifications:
| Characteristic | Value |
| Topology | Two-level half-bridge |
| IGBT module | 1200 V / 600 A, EconoDUAL package |
| Number of parallel modules | 6 |
| Switching frequency | 4 kHz |
| Stack power loss | |
| Cooling | Liquid cooling |
| Dimensions, Length × width × height | 648*500*148.6 mm |
| Weight | 34 kg |

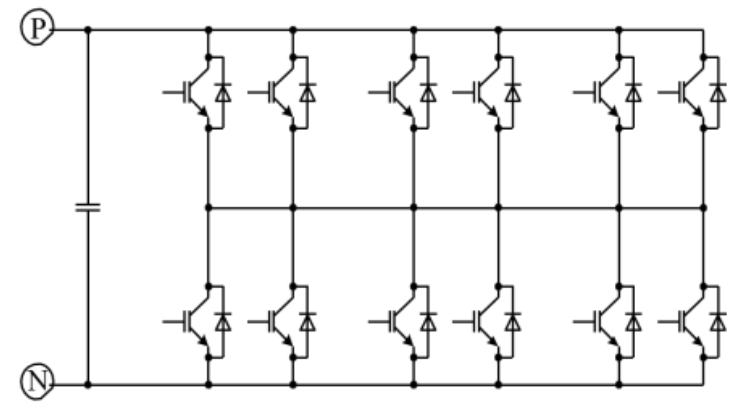

Topology:
