Motor Drives | Firstack

As a leading enterprise in power electronics drive technology, Firstack has been committed to delivering high-performance motor drive system solutions. Precise digital control and intelligent fault management have been achieved through the adoption of next-generation ASIC platforms. High-reliability gate driver series have been developed by Firstack utilizing standardized CBB circuits, enabling highly optimized motor control while ensuring a flexible system configuration.

Part Number	Application	Description	Max Breakdown Voltage	Power Switch
FS06P	Photovoltaic Motor Drives Other Industrial Energy Storage System	6W SM isolated DC/DC converter with 8pF coupling capacitance, 9mm creepage distance, 9mm clearance distance	1200V	IGBT, Si/SiC-MOSFET
FPS08-15K	Rail Photovoltaic Motor Drives Energy Storage System	8W isolated DC/DC converter with 5pF coupling capacitance, 60mm creepage distance	6500V	IGBT
2FHC0215	Motor Drives Energy Storage System	● Dual channel, 2W / 15A ● Support multi-level topology ● Soft shut down, Undervoltage, Short-circuit	1700V	IGBT
2FHC0215xV	Motor Drives Energy Storage System	● Dual channel, 2W / 15A ● Support multi-level topology ● Soft shut down, Undervoltage, Short-circuit	1700V	IGBT

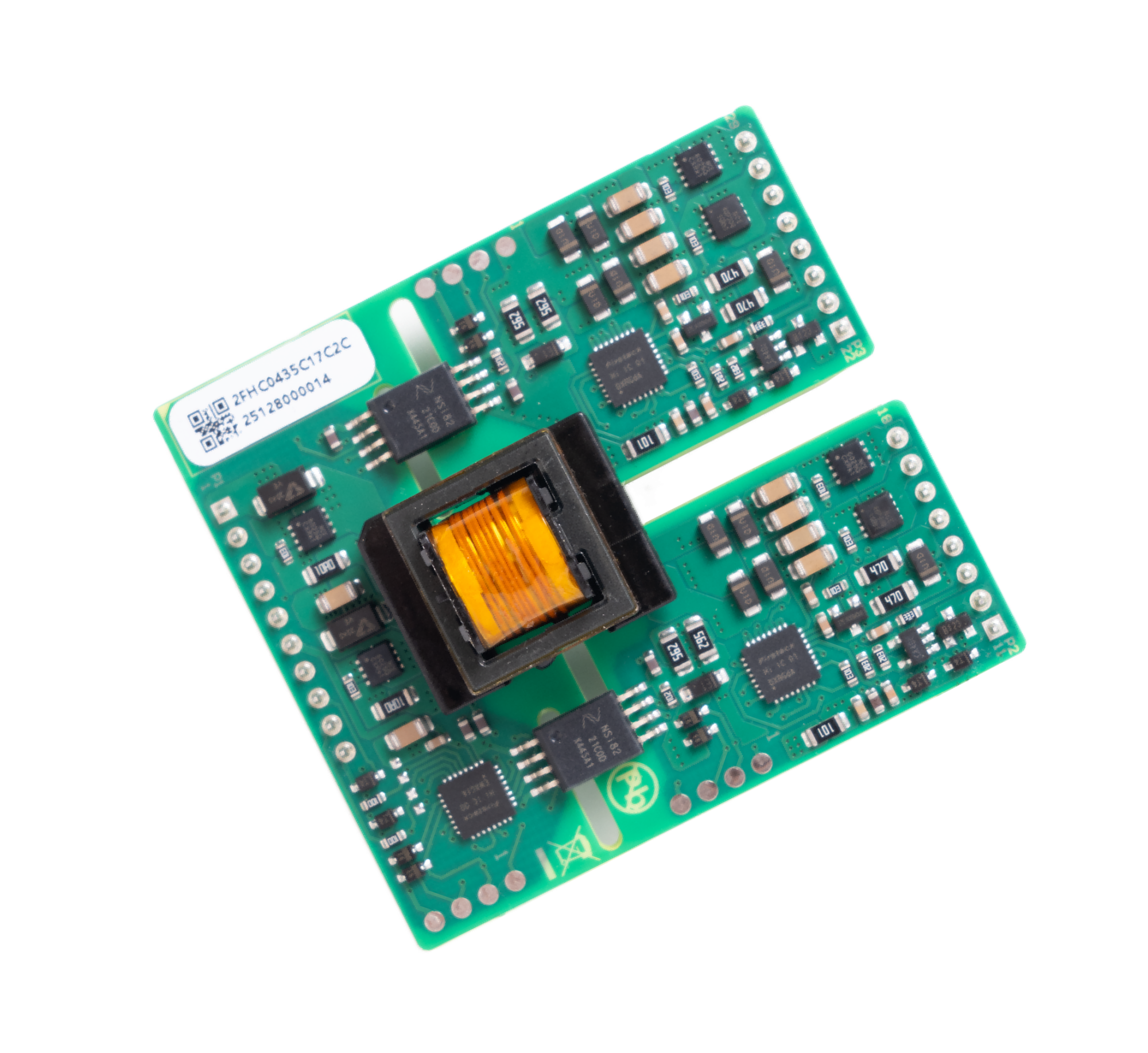

2FHC0435	Motor Drives Energy Storage System	● Dual channel, 4W / 35A ● Support multi-level topology ● Soft shut down, Undervoltage, Active clamping, Short-circuit	1700V	IGBT
2FHC0660	Motor Drives Energy Storage System	● Dual channel, 6W / 60A ● Support multi-level topology ● Soft shut down, Undervoltage, Intelligent fault management	3300V	IGBT
2FHD0115	Rail Motor Drives Other Industrial Power Transmission	● Dual channel, 1.2W / 20A, for EconoDual module ● Support 2-level topology ● Soft shut down, Active clamping	1700V	IGBT

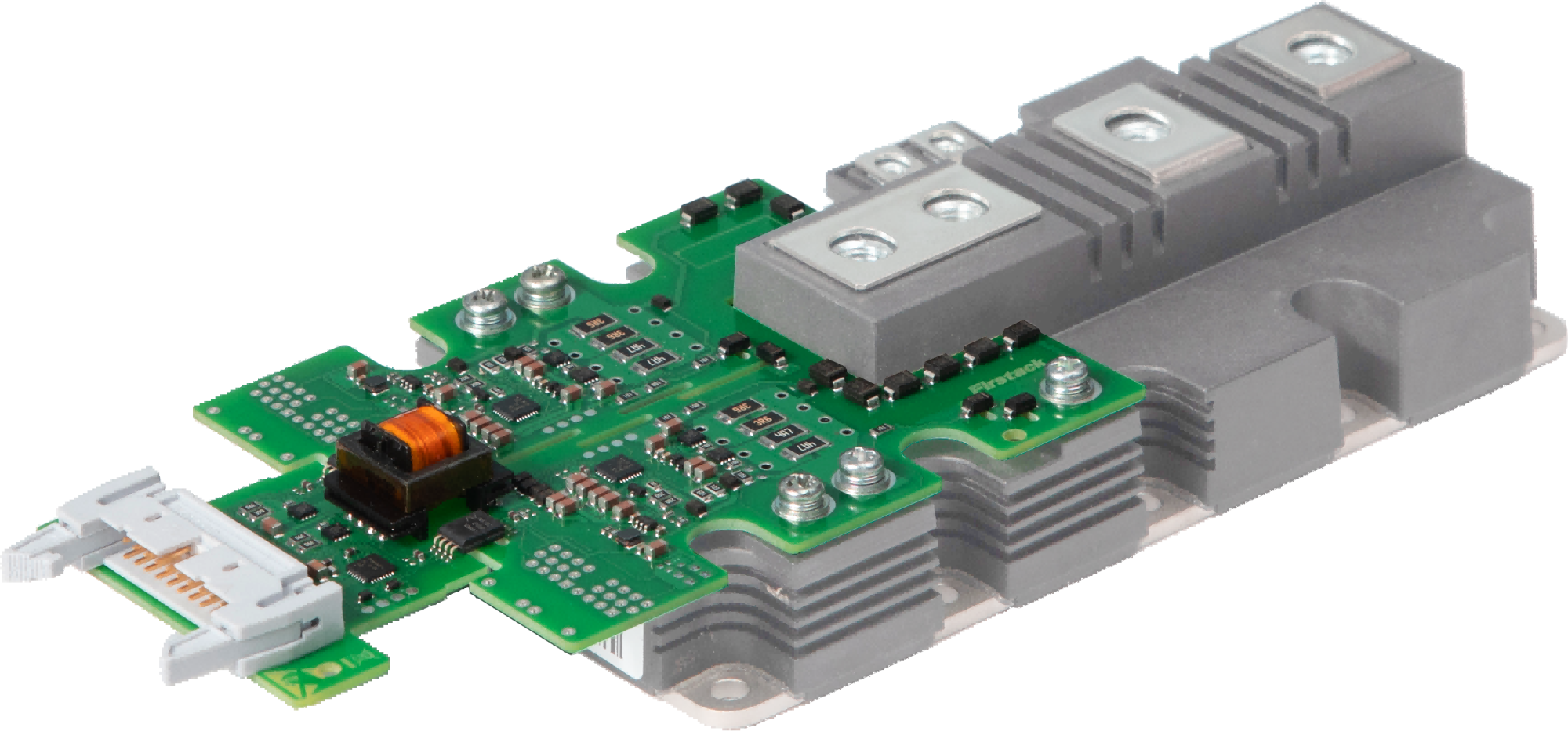

2FHD0320	Motor Drives Energy Storage System	● Dual channel, 3W / 20A, for PrimePack module ● Support 2-level topology ● Vce sense, Active clamping, Soft shut down	1700V	IGBT
HV1027P	Rail Motor Drives Power Transmission	● Single channel, 3W / 27A, for IHV module ● Support multi-level topology ● Soft shut down, Undervoltage, Vce detection, Active clamping, Multi-level turn-off, Highly robust DC/DC	6500V	IGBT
2FHD0220	Rail Motor Drives Energy Storage System	● Dual channel, 2W / 20A, for 62mm module ● Support 2-level topology ● Miller clamping, Undervoltage, Intelligent fault management, Soft shut down	2000V	SiC MOSFET/IGBT
2FHD0620	Rail Motor Drives Energy Storage System	● Dual channel, 6W / 20A, for EconoDual module ● Support 2-level topology ● Soft shut down, Undervoltage, Intelligent fault management	1700V	SiC MOSFET
1FSS0560	Rail Motor Drives Power Transmission	● Single channel, 5W / 60A ● Support multi-level topology ● Undervoltage, Active clamping, Soft shut down, Multi-level turn-off, Highly robust DC/DC	4500V	IGBT
SK08110	Rail Motor Drives Power Transmission	● Single channel, 8W / 110A for IHV module ● Support multi-level topology ● di/dt, Undervoltage, Soft shut down, Multi-level turn-on/off, Advanced active clamping, Highly robust DC/DC, Over-temperature	6500V	IGBT
