Energy Storage System

Accelerating the development of renewable energy has been recognized as a core strategy for addressing the ecological crisis; nevertheless, the natural resources upon which it depends are subject to spatiotemporal variability and remain difficult to predict with precision. In addressing the intermittency of energy supply, energy storage technology has been regarded as essential.

Part Number	Application	Description	Max Breakdown Voltage	Power Switch
2FHC0215xV	Motor Drives Energy Storage System	● Dual channel, 2W / 15A ● Support multi-level topology ● Soft shut down, Undervoltage, Short-circuit	1700V	IGBT
2FHC0435	Motor Drives Energy Storage System	● Dual channel, 4W / 35A ● Support multi-level topology ● Soft shut down, Undervoltage, Active clamping, Short-circuit	1700V	IGBT
2FSC0110	Photovoltaic Energy Storage System	● Dual channel, 1W / 10A ● Support 2-level, T-type 3-level, NPC I-type 3-level ● No protection	1200V	IGBT
2FHC0215	Motor Drives Energy Storage System	● Dual channel, 2W / 15A ● Support multi-level topology ● Soft shut down, Undervoltage, Short-circuit	1700V	IGBT
2FHC0660	Motor Drives Energy Storage System	● Dual channel, 6W / 60A ● Support multi-level topology ● Soft shut down, Undervoltage, Intelligent fault management	3300V	IGBT
2FHD0320	Motor Drives Energy Storage System	● Dual channel, 3W / 20A, for PrimePack module ● Support 2-level topology ● Vce sense, Active clamping, Soft shut down	1700V	IGBT
2FHD0220	Rail Motor Drives Energy Storage System	● Dual channel, 2W / 20A, for 62mm module ● Support 2-level topology ● Miller clamping, Undervoltage, Intelligent fault management, Soft shut down	2000V	SiC MOSFET/IGBT
2FHD0620	Rail Motor Drives Energy Storage System	● Dual channel, 6W / 20A, for EconoDual module ● Support 2-level topology ● Soft shut down, Undervoltage, Intelligent fault management	1700V	SiC MOSFET

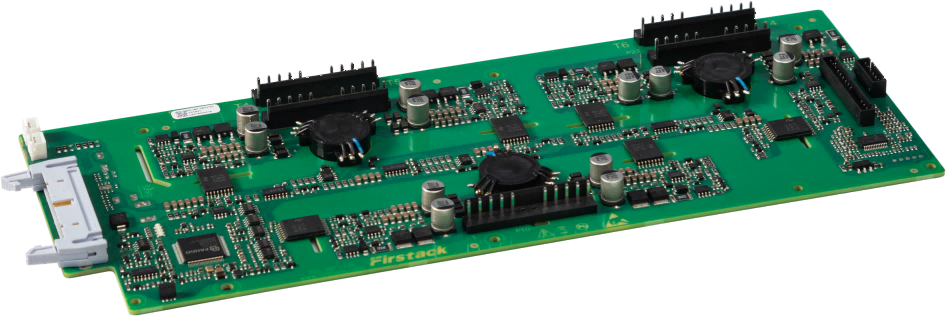

ED-WP-CB	Photovoltaic Wind Power Energy Storage System	● 4W / 110A, for EconoDual module ● Multi-parallel of 3-level NPC/ANPC topology ● Soft shut down, Undervoltage, Fault sequence, NTC detection	1700V	IGBT
