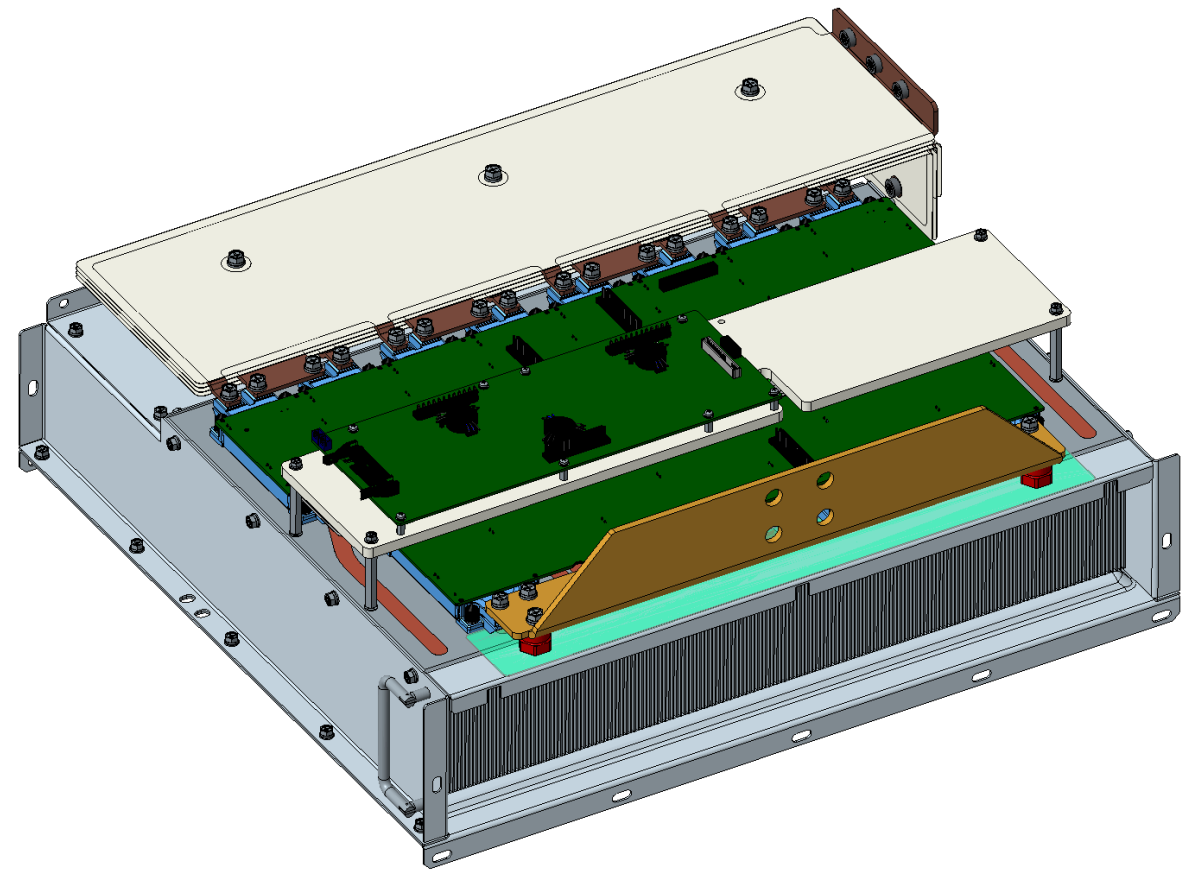

EnglishFPS160HA124XA002
Features:
● 3L-ANPC topology
● 4 IGBTs in parallel
● Forced air cooling(fan not implemented)
Typical Applications:
● ESS converter
● Electrolyser Power Supply
● PV inverter
● 3L-ANPC topology
● 4 IGBTs in parallel
● Forced air cooling(fan not implemented)
Typical Applications:
● ESS converter
● Electrolyser Power Supply
● PV inverter
| Rated AC voltage | Rated AC current | Rated Full DC bus voltage |
|---|---|---|
| 690V | 1600A | 1500V |
Product Information
Product specifications:
| Characteristic | Value |
| Topology | Three-level half-bridge |
| IGBT module | 1200 V / 800 A, EconoDUAL package |
| Number of parallel modules | 4 |
| Switching frequency | 3 kHz |
| Stack power loss | 6.5 kW |
| Cooling | Air cooling |
| Dimensions, Length × width × height | 621.5*538*222 mm |
| Weight | 47 kg |

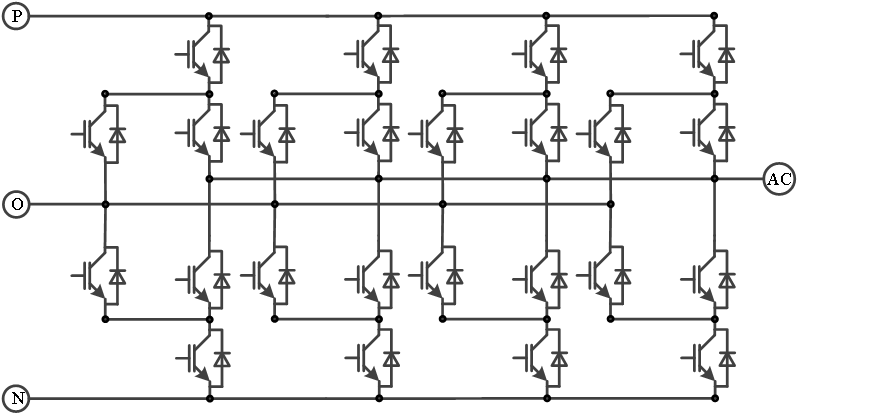

Topology:
