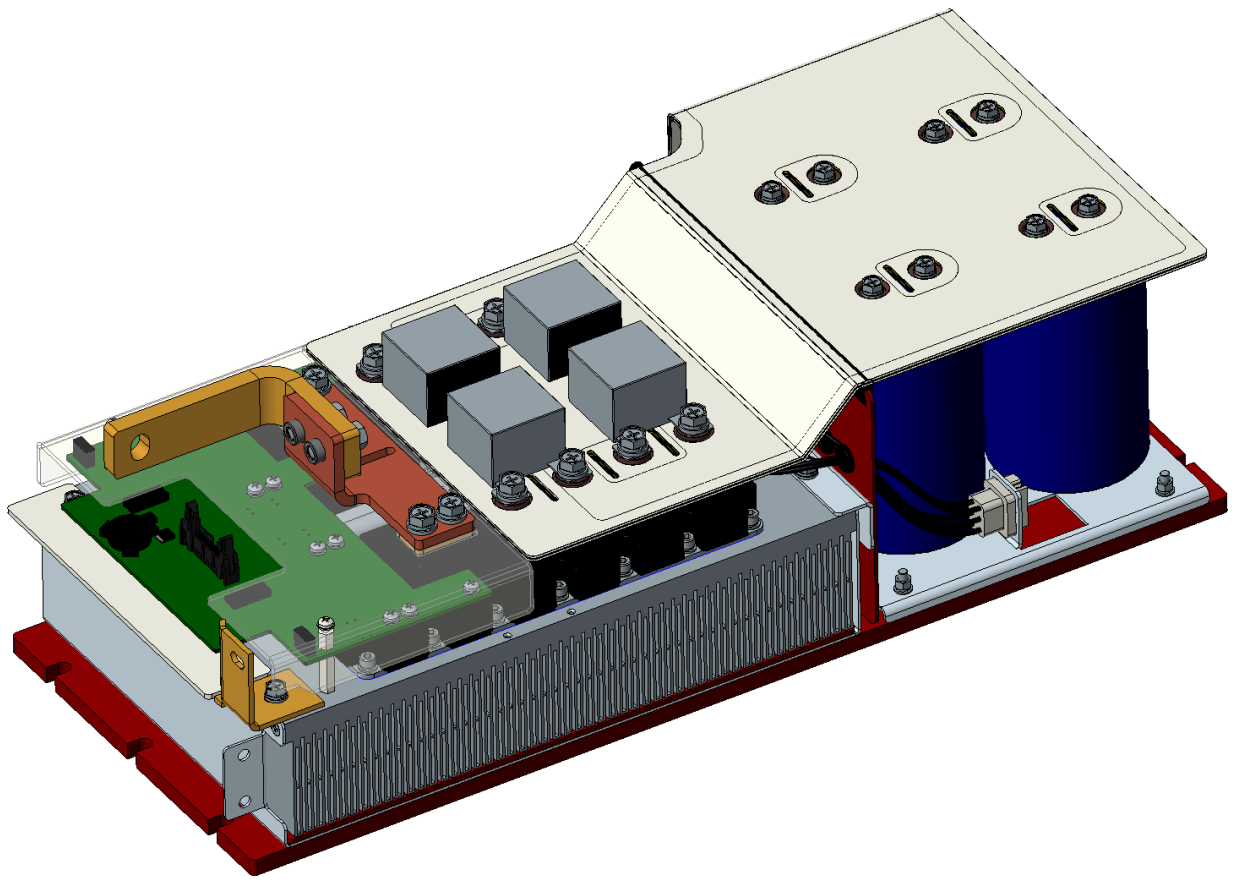

EnglishFPS120H122XA002
Features:
● Half bridge topology
● 2 IGBTs in parallel
● Forced air cooling (fans not included)
Typical Applications:
● ESS converter
● Wind power converter
● PV inverter
● Half bridge topology
● 2 IGBTs in parallel
● Forced air cooling (fans not included)
Typical Applications:
● ESS converter
● Wind power converter
● PV inverter
| Rated AC voltage | Rated AC current | Rated Full DC bus voltage |
|---|---|---|
| 380V | 1200A | 800V |
Product Information
Product specifications:
| Characteristic | Value |
| Topology | Two-level half-bridge |
| IGBT module | 1200 V / 1400 A, PrimePACK package |
| Number of parallel modules | 2 |
| Switching frequency | 3.5 kHz |
| Stack power loss | TBD |
| Cooling | Air cooling |
| Dimensions, Length × width × height | 602*265.7*176.5 mm |
| Weight | 35 kg |
Topology:
