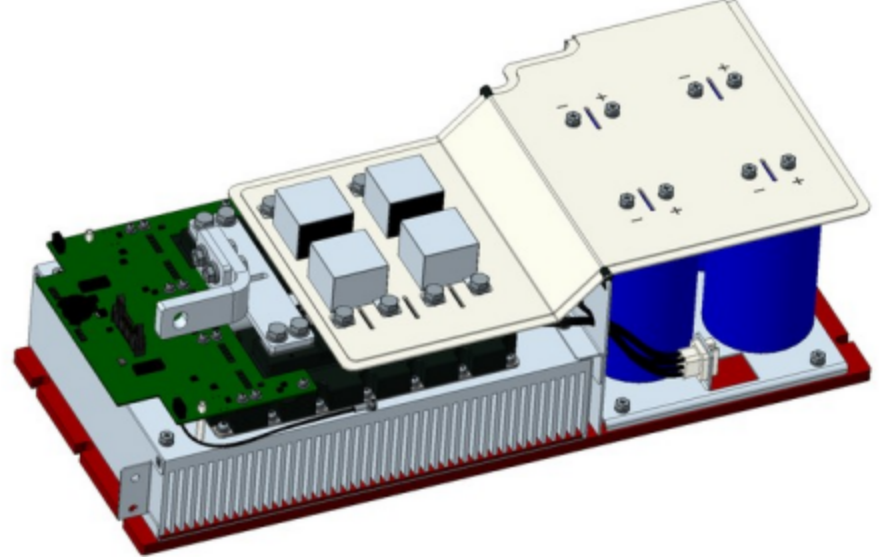

EnglishFPS090H172XA001
Features:
● Half bridge topology
● 2 IGBTs in parallel
● Forced air cooling (fans not included)
Typical Applications:
● ESS converter
● Wind power converter
● PV inverter
● Half bridge topology
● 2 IGBTs in parallel
● Forced air cooling (fans not included)
Typical Applications:
● ESS converter
● Wind power converter
● PV inverter
| Rated AC voltage | Rated AC current | Rated Full DC bus voltage |
|---|---|---|
| 690V | 900A | 1050V |
Product Information
Product specifications:
| Characteristic | Value |
| Topology | Two-level half-bridge |
| IGBT module | 1700 V / 1000 A, PrimePACK package |
| Number of parallel modules | 2 |
| Switching frequency | 3.5 kHz |
| Stack power loss | 5.26 kW |
| Cooling | Air cooling |
| Dimensions, Length × width × height | 611.5*266*177 mm |
| Weight | 33.8 kg |

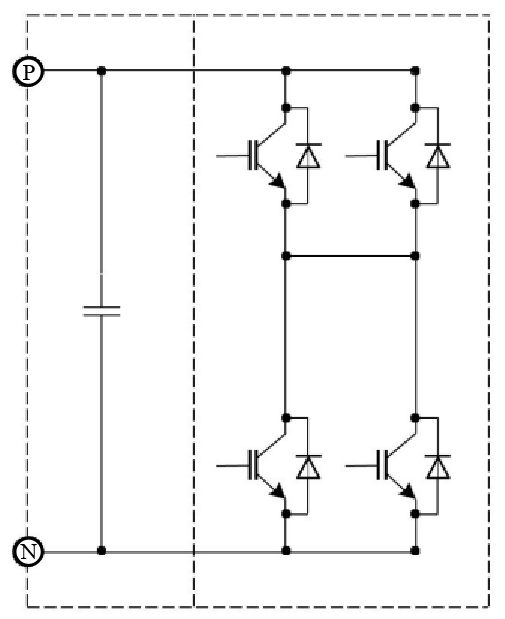

Topology:
