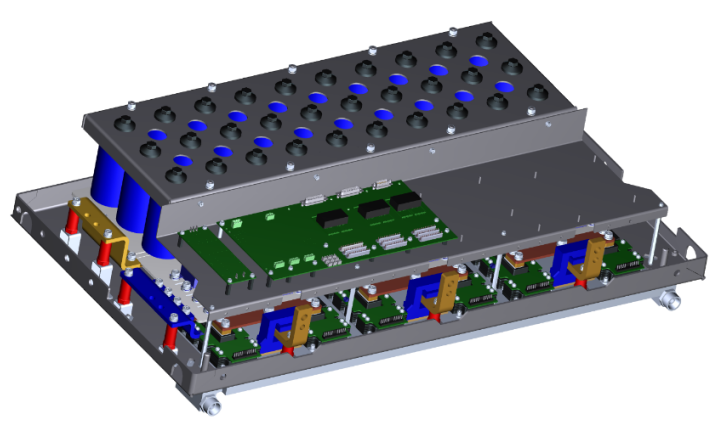

EnglishFPS088T172W001
Features:
● 3-phase 2-level
● 2 IGBTs in parallel
● Liquid cooling
Typical Applications:
● Wind Power
● 3-phase 2-level
● 2 IGBTs in parallel
● Liquid cooling
Typical Applications:
● Wind Power
| Rated AC voltage | Rated AC current | Rated Full DC bus voltage |
|---|---|---|
| 690V | 880A | 1150V |
Product Information
Product specifications:
| Characteristic | Value |
| Topology | Three phase Two-level half -bridge |
| IGBT module | 1700 V / 1000 A, PrimePACK package |
| Number of parallel modules | 2 |
| Switching frequency | 3 kHz |
| Stack power loss | 11.22 kW |
| Cooling | Liquid cooling |
| Dimensions, Length × width × height | 1090*596*272 mm |
| Weight | 96 kg |

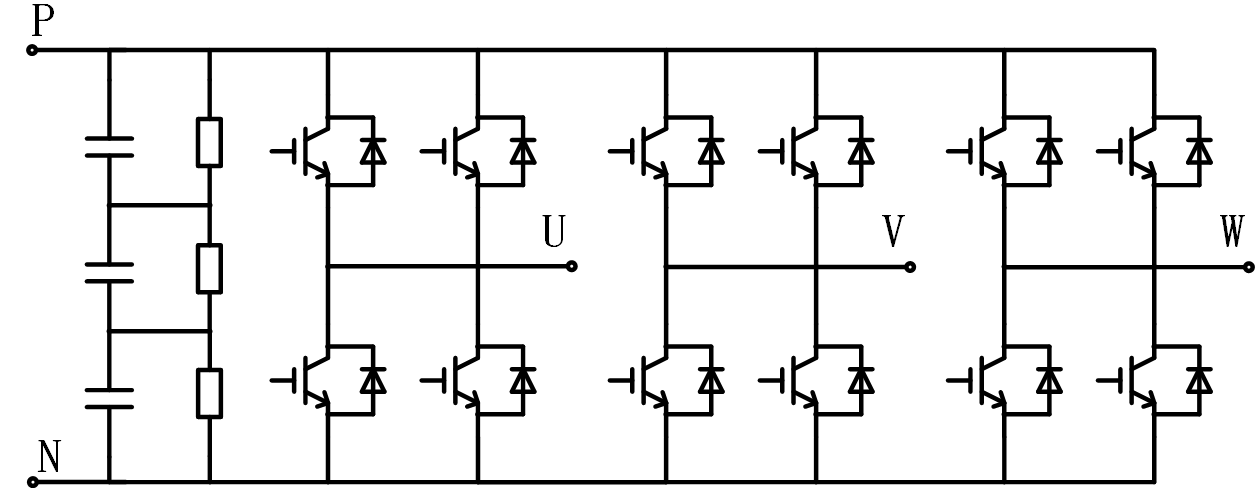

Topology:
