EnglishFPS080HB451XW001
Features:
● 3L-NPC topology
● Liquid cooling
Typical Applications:
● On-shore power supply
● Wind power converter
● Motor drive
● 3L-NPC topology
● Liquid cooling
Typical Applications:
● On-shore power supply
● Wind power converter
● Motor drive
| Rated AC voltage | Rated AC current | Rated Full DC bus voltage |
|---|---|---|
| 3300V | 800A | 5000V |
Product Information
Product specifications:
| Characteristic | Value |
| Topology | Three-level NPC half-bridge |
| IGBT module | 4500 V / 1200 A, IHM package |
| Number of parallel modules | 1 |
| Switching frequency | 0.9 kHz |
| Stack power loss | 11.5 kW |
| Cooling | Liquid cooling |
| Dimensions, Length × width × height | 745*540*135 mm |
| Weight | 35 kg |

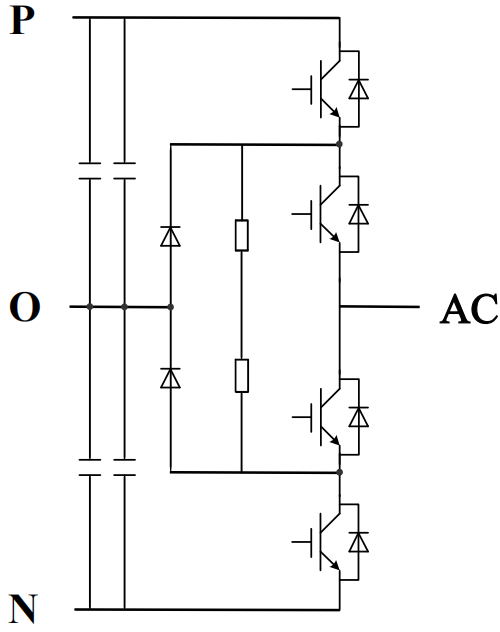

Topology:
