EnglishFPS036TA121XWP001
Features:
● 3-phase 3-level ANPC
● Liquid cooling
Typical Applications:
● ESS converter
● 3-phase 3-level ANPC
● Liquid cooling
Typical Applications:
● ESS converter
| Rated AC voltage | Rated AC current | Rated Full DC bus voltage |
|---|---|---|
| 690V | 360A | 1500V |
Product Information
Product specifications:
| Characteristic | Value |
| Topology | Three phase Three-level half -bridge |
| IGBT module | 1200 V / 750 A, EconoDUAL package |
| Number of parallel modules | 1 |
| Switching frequency | 3.5 kHz |
| Stack power loss | 4 kW |
| Cooling | Liquid cooling |
| Dimensions, Length × width × height | 424*324.5*451 mm |
| Weight | 46 kg |

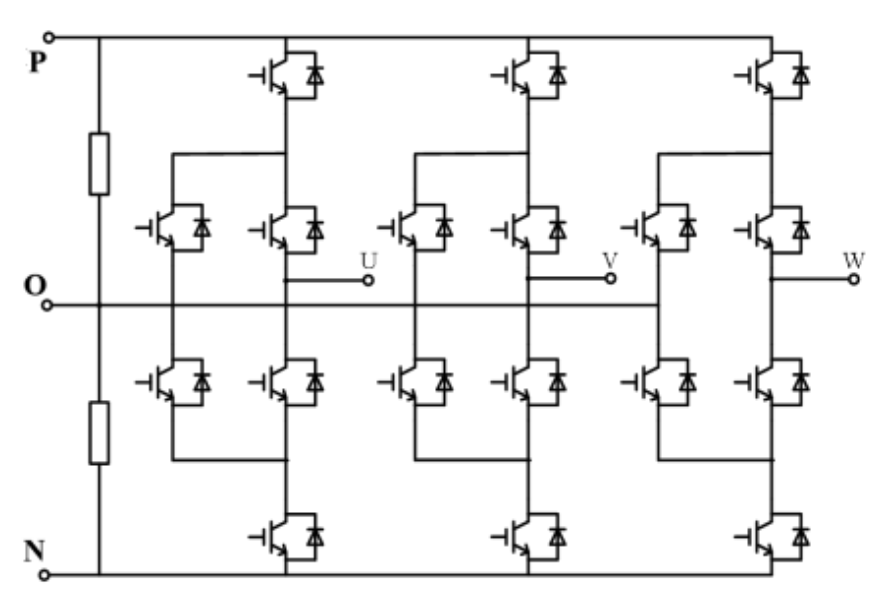

Topology:
