English1FSD215
● Multi-level topology
● SSD, di/dt, UVLO, Active clamping, Highly robust DC/DC
| Product | Max Breakdown Voltage | Optical Module | Positive Gate Voltage | Negetive Gate Voltage | RGON | RGOFF | CGE |
|---|---|---|---|---|---|---|---|
| 1FSD215-17-A1 | 1700V | Versatile Link | 15V | -10V | NC | NC | NC |
| 1FSD215-33-A1 | 3300V | Versatile Link | 15V | -10V | NC | NC | NC |
| 1FSD215-S-17-A1 | 1700V | ST | 15V | -10V | NC | NC | NC |
| 1FSD215-S-33-A1 | 3300V | ST | 15V | -10V | NC | NC | NC |
Product Information
Product Details

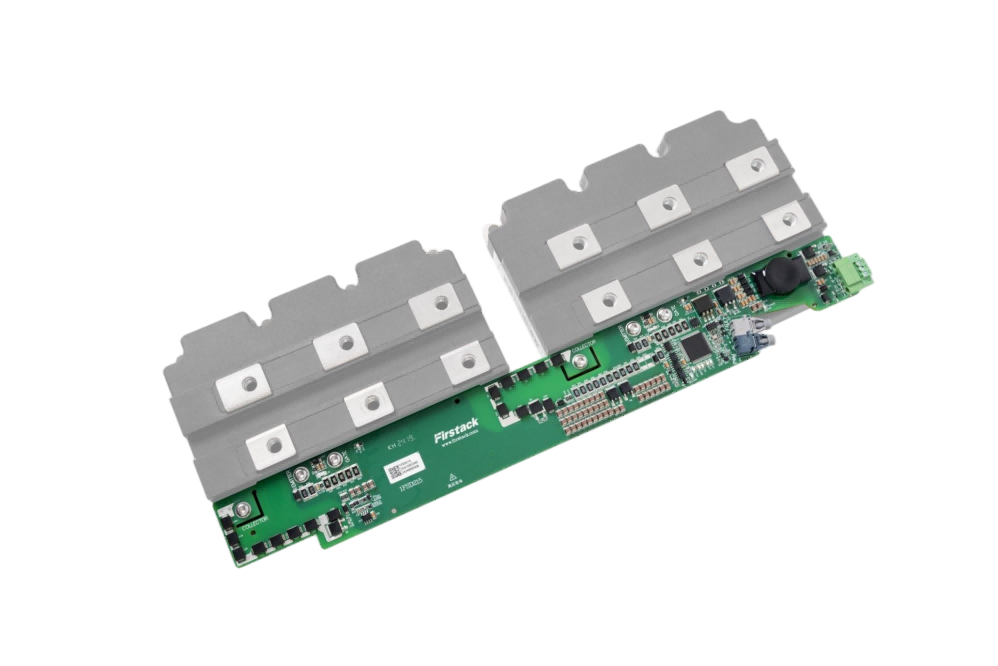

The 1FSD215 is a plug-and-play gate driver developed for high voltage IGBT modules based on the Firstack digital intelligent IGBT gate driver. It supports the operation of up to 3300V IHMTM IGBT power modules 3 in parallel with 15V gate voltage in on-state.
The 1FSD215 features single channel with optical interfaces, and supports multi-level topology.
Firstack intelligent 1FSD215 integrates the temperature sampling protection, which ensures the safety operation of the gate driver and IGBT.
Great EMC and Highly Integrated
Plug-and-play gate driver with 6 channels
Support 1700V IHMTM IGBT 3 in parallel
15V gate voltage in on-state
8W output power per channel at maximum ambient temperature
110A gate peak current
Optical interface
-40°C to 85°C operating ambient temperature
Protection
Undervoltage protection
Short-circuit protection(Soft shut down)
Active clamping
Safety Segregation Standard
EN50178
Level-2 protection
