English1FHD0440
● Support multi-level topology
● VCE SC, di/dt protection, advanced dynamic active clamping, power supply detection, intelligent fault management
| Part number | Max Breakdown Voltage | Number of Channels | Interface | Gate Peak Current | Power-Output/Channels(Max) | Supply Voltage(Typ.) | Temperature-Operating(Max) | Temperature-Operating(Min) |
|---|---|---|---|---|---|---|---|---|
| 1FHD0440V45A1C-Y0000 | 4500V | 1 | Optical | 40A | 1W(≤85℃) | 25V | 85℃ | -40℃ |
Product Information
Product Details

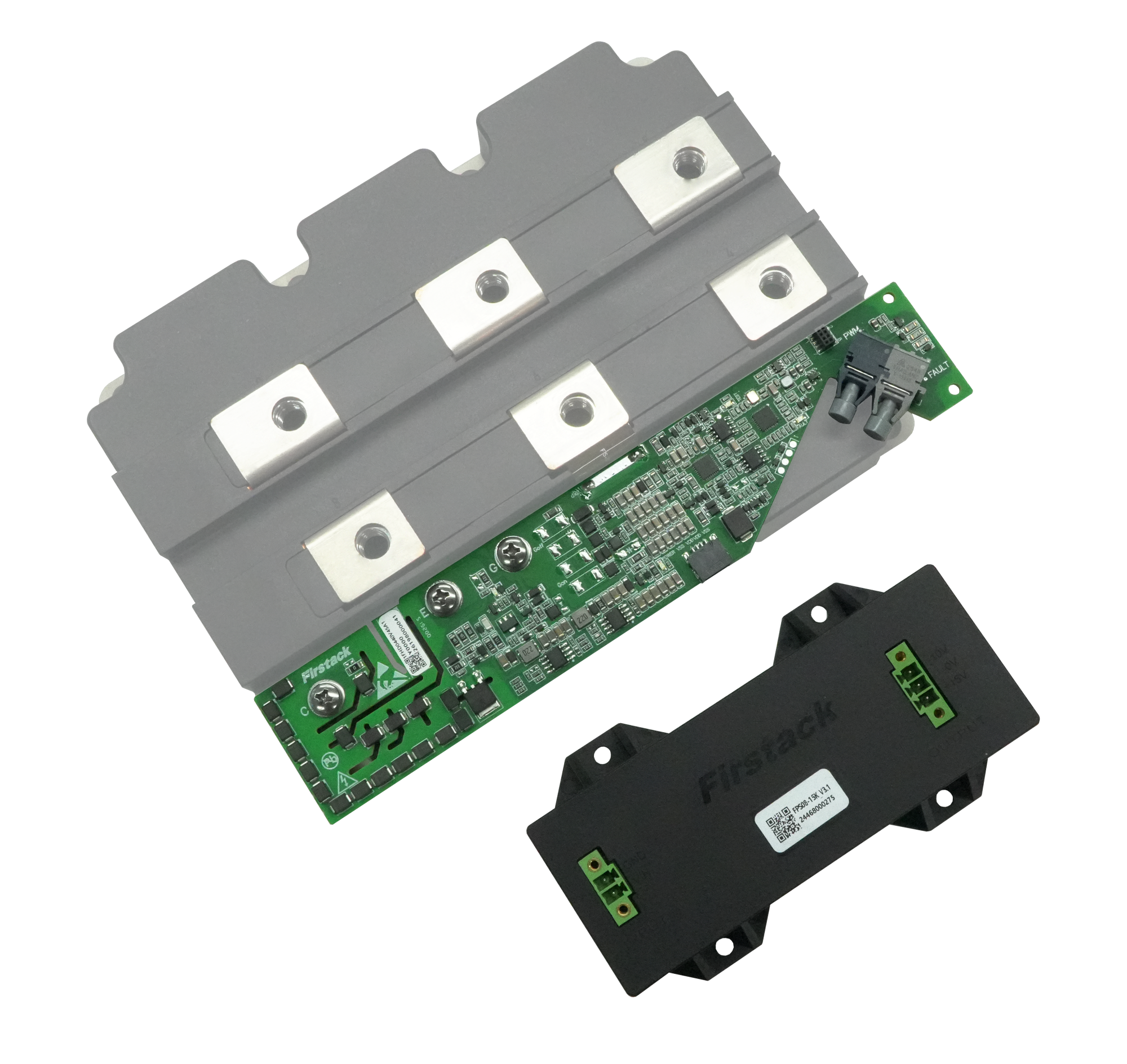

The 1FHD0440 is designed for 140mm×190mm IHM-B packaging and supports 4500V IGBT modules with identical packaging from various manufacturers, featuring plug-and-play functionality with an adjustable VGE operating voltage ranging from 15 to 30 V. As the driver lacks built-in isolation power supply, it requires use with external high-voltage isolation modules (FPS08-15K or FPS08-35K) for proper operation.
Highly Functional and Reliable
Plug-and-play gate driver solution for up to 4500V IHM IGBT
15V gate voltage in on-state
3W output power per channel at maximum ambient temperature
40A gate peak current
Optical interface
-40°C to 85°C operating ambient temperature
Protection
VCE short-circuit protection
di/dt short-circuitprotection
Advanced dynamic active clamping
Power supply detection
Intelligent fault management
Safety Segregation Standard
IEC 60747-1 Chapter 1
Level-2 protection
