FS02P• Surface Mount Package
• Embedded Magnetic Coil
• 12V&15V Input
• Support IGBT/SiC MOSFET/MOSFET
• Ultra-low coupling capacitance
• Embedded Magnetic Coil
• 12V&15V Input
• Support IGBT/SiC MOSFET/MOSFET
• Ultra-low coupling capacitance
| Product | Max Breakdown Voltage | Module Housing | Supported Module（s） | IGBT Manufacturer | Supported Module Type | Gate Turn-on Voltage | Gate Turn-off Voltage | Supported Topologies | Protection Features | Supply Voltage(Typ) | Power-Ouput/Channels(Max) | Connection Type to IGBT | Driving Mode | Gate Peak Current（Max） | Interface Type | Logic Input Voltage | Max Switching Frequecy | Numebers of Channels | Temperature-operating（Max） | Temperature-operating（Min） | Temperature-Storage（Max） | Temperature-Storage（Min） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FS02P121505MNA | / | Surface Mount | / | / | IGBT，SiC，MOSFET | 15V | -5V | / | Vin:UVP, OVP Vout :OCP, SCP, OTP | 12V | 2W | / | / | / | / | / | / | 1 | 105℃ | -40℃ | 125℃ | -40℃ |
| FS02P121509MNA | / | Surface Mount | / | / | IGBT，SiC，MOSFET | 15V | -9V | / | Vin:UVP, OVP Vout :OCP, SCP, OTP | 12V | 2W | / | / | / | / | / | / | 1 | 100℃ | -40℃ | 125℃ | -40℃ |
| FS02P122005MNA | / | Surface Mount | / | / | IGBT，SiC，MOSFET | 20V | -5V | / | Vin:UVP, OVP Vout :OCP, SCP, OTP | 12V | 2W | / | / | / | / | / | / | 1 | 100℃ | -40℃ | 125℃ | -40℃ |
| FS02P121804MNA | / | Surface Mount | / | / | IGBT，SiC，MOSFET | 18V | -4V | / | Vin:UVP, OVP Vout :OCP, SCP, OTP | 12V | 2W | / | / | / | / | / | / | 1 | 100℃ | -40℃ | 125℃ | -40℃ |
| FS02P151505MNA | / | Surface Mount | / | / | IGBT，SiC，MOSFET | 15V | -5V | / | Vin:UVP, OVP Vout :OCP, SCP, OTP | 15V | 2W | / | / | / | / | / | / | 1 | 100℃ | -40℃ | 125℃ | -40℃ |
| FS02P151509MNA | / | Surface Mount | / | / | IGBT，SiC，MOSFET | 15V | -9V | / | Vin:UVP, OVP Vout :OCP, SCP, OTP | 15V | 2W | / | / | / | / | / | / | 1 | 100℃ | -40℃ | 125℃ | -40℃ |
| FS02P152005MNA | / | Surface Mount | / | / | IGBT，SiC，MOSFET | 20V | -5V | / | Vin:UVP, OVP Vout :OCP, SCP, OTP | 15V | 2W | / | / | / | / | / | / | 1 | 100℃ | -40℃ | 125℃ | -40℃ |
| FS02P151804MNA | / | Surface Mount | / | / | IGBT，SiC，MOSFET | 18V | -4V | / | Vin:UVP, OVP Vout :OCP, SCP, OTP | 15V | 2W | / | / | / | / | / | / | 1 | 100℃ | -40℃ | 125℃ | -40℃ |
Product Information
Product Details

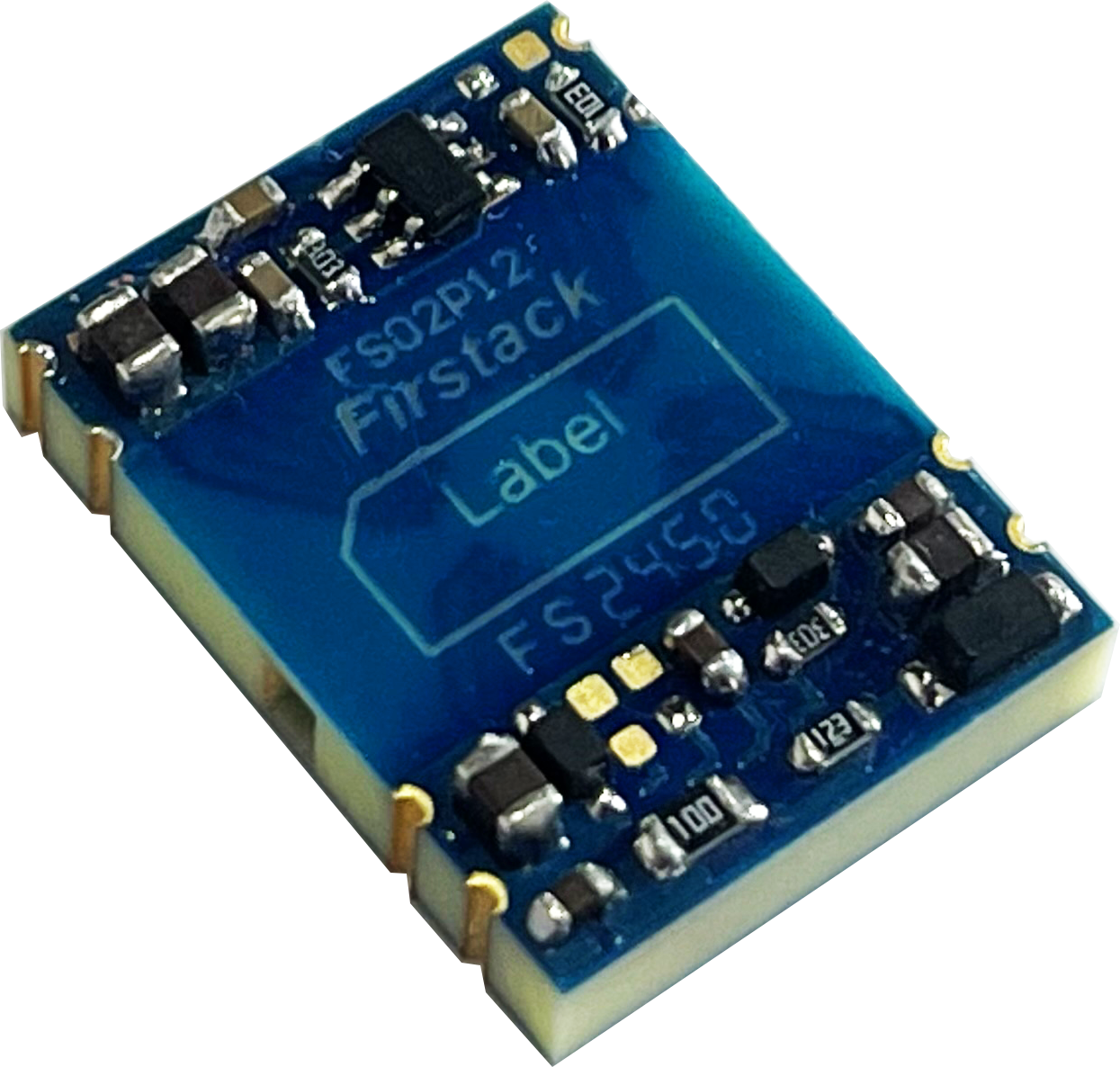

The FS02P series is a DC-DC converter specifically designed to drive single IGBT/SiC&MOSFET or bridge. This series has the ability to output multiple asymmetric voltages, and provide the best driving efficiency for the system. The FS02P series has high insulation withstand voltage, operating temperature, and efficiency, and is suitable for industrial grade motor drives, inverter circuits, and energy storage systems.
Configurable and Highly Reliable
6.5kVDC isolation volatge
Reinforced EMC
Protection
Input under-/over-voltage protection
Output over-current/short-circuit protection
Over-temperature protection
